Product introduction

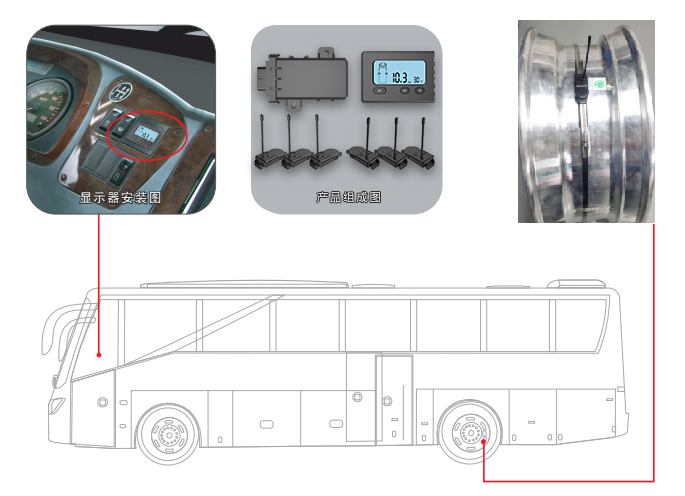

Use TRUCK's power DC12V-DC32v, and internal battery in monitor, can not set the tire positon and tire number by yourself (can not DIY),with rs232 port, can be connected to orther device, for example GPS module, Navigation ect. and the monitor can be installed in thetruck and not fixed on the dashboard, we named embedded

Features：

•Sensor built-in installation

• It requires professional installation tire removal tool

• Provide a power line to truck VCC

• Monitor can support up to 18 tire pressure, temperature and battery voltage cycle

• High-definition 2.8-inch black/white LCD display

•you must  use more repeaters when you use trailer

• Convertible pressure unit, Bar/Psi

• Adjustable viewing angle of display  by steady

• High/low pressure alarm

• Slow/fast leakage alarm

• High temperature alarm

• Low battery alarm

• Sensor failure alarm

• Real-time tire data monitoring

• Visual/Audible alarm

• Wireless transmission

Product Specifications：

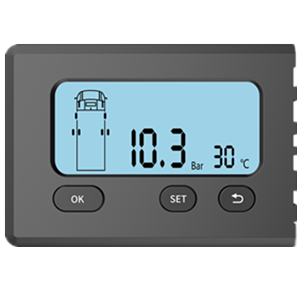

1、Embedded Receiver

• Operating frequency: 433.92MHz ±68KHz

• HF receive sensitivity：﹥-105 dBm

• Operating voltage: DC12V—DC32V

• Working Current: ≤15mA

Default warning value:

• Low pressure alarm threshold default: 7.5Bar

• High pressure alarm threshold default: 12.5Bar

• High temperature: 85°C

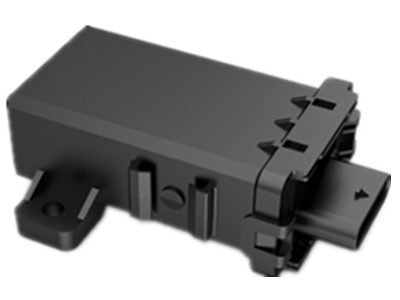

2、Repeater

The smart repeater is used to forward the sensor transmitter signal and send it to the central monitor after amplification. It can automatically match with different central monitor. To ensure good communication performance of smart relays.

High-tech materials are resistant to shock, water, and dust and are suitable for harsh environments.

• Operating voltage: DC12V-32V;
• Operating frequency: 433.92MHz
• Maximum operating current ≤50mA
• Quiescent Current: ≤5mA
• Operating temperature: -40~+85°C
• Storage temperature: -40°C～+125°C
• Transmission power:<10dbm
• Receiver sensitivity: >-105dbm
• High-frequency modulation method: FSK
• Transmission power:<10dbm
• Specifications size: 104*80*36mm

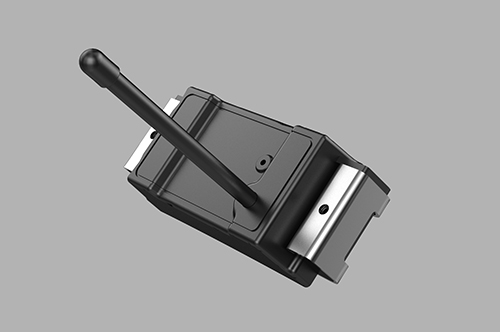

3、TN200 Bandage Sensor

• Operating frequency: 433.92MHz ±30KHz

• Operating current: ＜10mA

• Static current: ＜0.7uA

• Operating temperature: -40°C～+125°C

• Storage temperature: -40°C～+125°C

• Battery model: CR2450  (550mAh)

• Battery lifespan: ≥5years

• Pressure range: 0-14Bar/0-203Psi

• Pressure Accuracy：±0.1Bar/±1.5Psi

• Temperature Accuracy：±3°C

• Weight: 59±0.5g

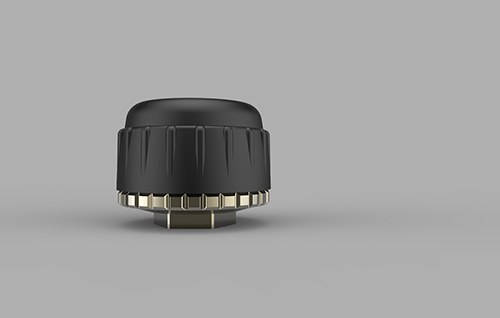

4、TW100 External Sensor

• Operating frequency: 433.92MHz ±30KHz

• Operating current: ＜10mA

• Static current: ＜0.7 uA

• Operating temperature: -30°C～+60°C

• Storage temperature: -40°C～+125°C

• Battery model: CR1632  (140mAh)

• Battery lifespan: ≥1years

• Pressure range: 0-14Bar/0-203Psi

• Pressure Accuracy：±0.1Bar/±1.5Psi

• Temperature Accuracy：±3°C

• Weight: 9±1g
