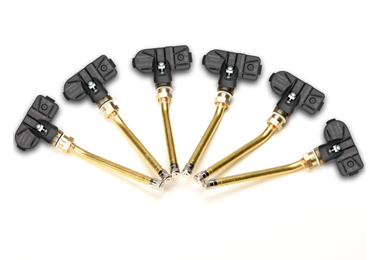

Products > TPMS > Valve type TPMS


Product Introduction


Features：

1. Using Freescale chip, combined with the company's unique algorithm, the sensor second update data


2. Full imported car gauge material, long life, high stability, strong anti-interference ability, adopt IP67 protection grade

3. Simultaneous measurement, monitoring of air pressure and temperature, and self-test and tire leak monitoring


4.Suitable for all vacuum tyres in the measuring range



Specifications:

• Operating frequency: 433.92MHz ±30KHz

• Operating current: ＜10mA

• Static current: ＜0.7 uA

• Operating temperature: -40°C～+125°C

• Storage temperature: -40°C～+125°C

• Battery model: CR2050  (345mAh)

• Battery lifespan: ≥3years

• Pressure range: 0-14Bar/0-203Psi

• Pressure Accuracy：±0.1Bar/±1.5Psi

• Temperature Accuracy：±3℃

• Weight:20g ± 0.5g (without Valve)
