Product introduction

Use TRUCK's power DC12V-DC32v,,with rs232 port, can be connected to orther device, for example GPS module


Features：

•Sensor built-in installation

• It requires professional installation tire removal tool

• Provide a power line to truck VCC

• Monitor can support up to 26 tire pressure, temperature and battery voltage cycle

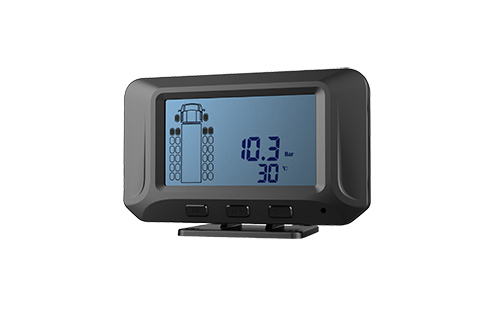

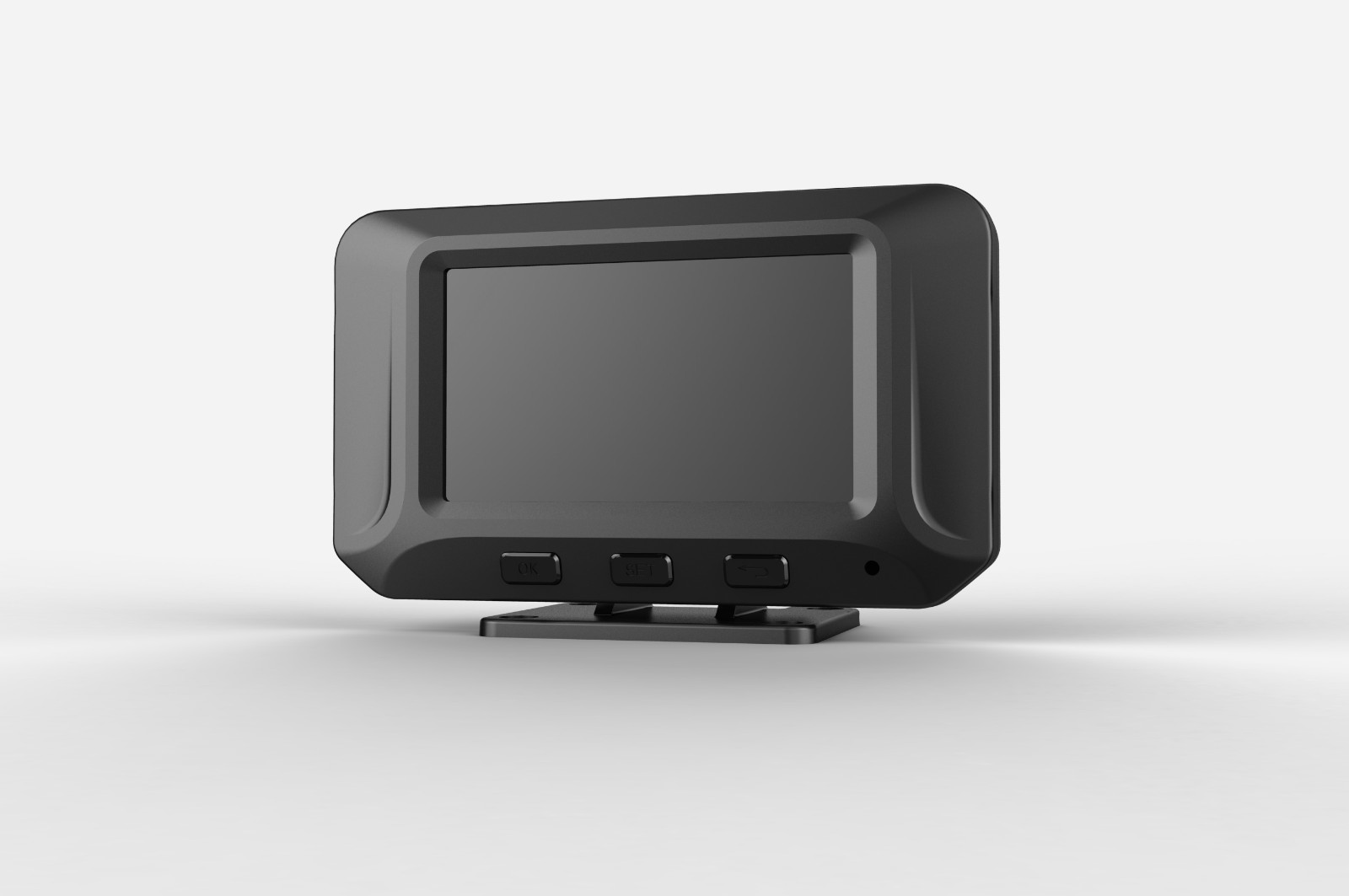

• High-definition 3.5-inch black/white LCD display

• Convertible pressure unit, Bar/Psi

• Adjustable viewing angle of display by steady

• High/low pressure alarm

• Slow/fast leakage alarm

• High temperature alarm

• Low battery alarm

• Sensor failure alarm

• Real-time tire data monitoring

• Visual/Audible alarm

• Wireless transmission



Product Specifications：

1、Receiver


• Operating frequency: 433.92MHz ±68KHz

• HF receive sensitivity：﹥-105 dBm

• Operating voltage: DC12V—DC32V

• Working Current: ≤15mA



Default warning value:

• Low pressure alarm threshold default: 7.5Bar

• High pressure alarm threshold default: 12.5Bar

• High temperature: 85°C


2、Repeater



The smart repeater is used to forward the sensor transmitter signal and send it to the central monitor after amplification. It can automatically match with different central monitor. To ensure good communication performance of smart relays.

High-tech materials are resistant to shock, water, and dust and are suitable for harsh environments.

• Operating voltage: DC12V-32V;
• Operating frequency: 433.92MHz
• Maximum operating current ≤50mA
• Quiescent Current: ≤5mA
• Operating temperature: -40~+85°C
• Storage temperature: -40°C～+125°C
• Transmission power:<10dbm
• Receiver sensitivity: >-105dbm
• High-frequency modulation method: FSK
• Transmission power:<10dbm
• Specifications size: 104*80*36mm


3、TN200 Bandage Sensor




• Operating frequency: 433.92MHz ±30KHz

• Operating current: ＜10mA

• Static current: ＜0.7uA

• Operating temperature: -40°C～+125°C

• Storage temperature: -40°C～+125°C

• Battery model: CR2450  (550mAh)

• Battery lifespan: ≥5years

• Pressure range: 0-14Bar/0-203Psi

• Pressure Accuracy：±0.1Bar/±1.5Psi

• Temperature Accuracy：±3°C

• Weight: 59±0.5g


4、TW100 External Sensor



• Operating frequency: 433.92MHz ±30KHz

• Operating current: ＜10mA

• Static current: ＜0.7 uA

• Operating temperature: -30°C～+60°C

• Storage temperature: -40°C～+125°C

• Battery model: CR1632  (140mAh)

• Battery lifespan: ≥1years

• Pressure range: 0-14Bar/0-203Psi

• Pressure Accuracy：±0.1Bar/±1.5Psi

• Temperature Accuracy：±3°C

• Weight: 9±1g
