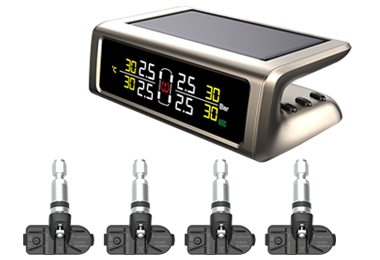

Products > TPMS > CDS500


Features:

• High-definition colorful LCD display, simultaneously show 4 tires pressure

• Pressure range: 0-8Bar / 0-116PSI

• Sensor preset in factory

• Display can be charged by solar energy or mini USB charging slot

• Intelligent design for power saving of display

• Self-testing for each power on

• High-capacity battery, can be used normally two months

• End users can set the threshold of tire pressure

• Convertible pressure unit (PSI / Bar)

• Sleeping mode available, Built-in G-sensor, can be wake up immediately when the car is moving.

• Display with visual and audible warning for tire pressure and temperature

• Low display battery warning

•From the car stop to start, Sensor can be wake up in 5s




Technical specifications for display:

• Operating frequency: 433.92MHz

• Operating current: ≤7mA

• Static current: ≤100μA

• Operating voltage: 4.5-6V

• Operating temperature: -25℃-85℃

•  Size: 94*57*32 mm
