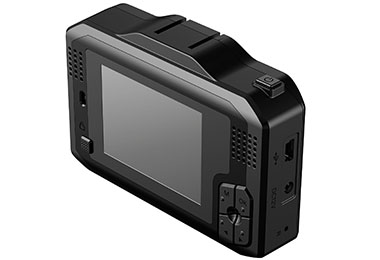

Products > Car DVR > G24 3-1 Combo device


  • High-defination video SHD(2K)

  • WIFI support-DB Upgrade

  • ADAS-driving support function

  • GPS positioning function-speed camera alert

  • Slim Signature-anti false alerts

  • Memory card support 128GB


G24 Specifications:

Receiveing frequency

GPS

1575.42±1.023MHz


Strelka

24.15±100MHz


X-BAND

10.525GHz±150MHz.


K-BAND

24.125GHz±175MHz


Ku-BAND

13.450GHz±125MHz


Ka-BAND

34.700GHz±1300MHz



35.100GHz±1300MHz


Laser

800-1000nm

Language

Multi-language

Simplified Chinese、English.Russian

Update GPS radar’data

Support

DVR CPU

Ambarella A12 A35

Memory

Flash

Radar 8M/DVR 1G


External memory

Memory card requires 8G , the class ⑩ at least.

Maximum support 128G.

Display

Size

2.31-Inch TFT screen

Camera

OV4689

Lens

6G+IR Filter

HDMI

NO

Vedio solution

1296P/30FPS ,

G-sensor

Support,Automatically recording protection Sensitivity

Tracking playback

Support

Loop recording

Support

Built-in Battery

420mAh/ Explosion-proof high-capacity polymer lithium battery

Operating voltage

DC12V

Storage Temperature

-20℃∽70℃

Computer system

Windows/2003/XP/vista/Win7
